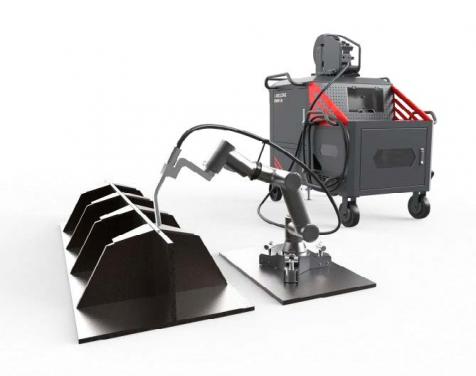

The collaborative robot system is an intelligent welding solution that integrates a collaborative robot, a mobile platform, Guangwei intelligent welding power source, and the Guangwei smart welding system.

The system features manual drag teaching, vision-guided teaching-free operation, adaptive welding process parameters, and mobile deployment capabilities. It is widely used in various industrial fields such as steel structures (including construction, shipbuilding, bridge engineering, offshore engineering, and equipment manufacturing) as well as automotive components. It is particularly well-suited for automated welding tasks involving small-batch and multi-specification products.

product features
Simple Operation：Manual Drag Teaching (Optional Vision-Based Teaching-Free System)
High Flexibility：The robot features a lightweight body and a highly mobile equipment platform.
High Intelligence：Adaptive Welding Parameters and Multi-Layer Multi-Pass Trajectory Planning

Welding Application Scope：Single-Pass / Multi-Layer Multi-Pass All-Position Automated Welding Operations

product composition

Robot Model：FR3
Welding power source：GW500

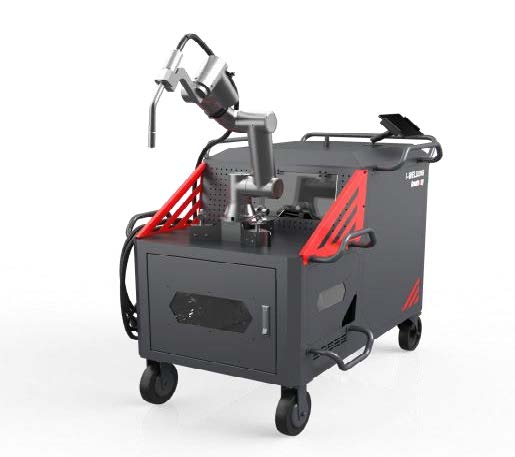

Mobile Welding Carriage：GW-Type-0
Vision System (Optional)：GW-Smart-Vision

Welding control system：GW-Smart-Welding
Dimension：1300*750*1200mm (Length*Width*Height)

robot parameters

Workspace：622mm

Payload：3KG
Weight：14KG
Robot Repeatability：±0.02mm

GW_Smart_Welding

The software can automatically adapt welding parameters to suit various types of weld seams encountered in shipbuilding and steel structure applications. Operators only need to manually input basic parameters such as plate thickness, weld seam type, and welding process. The system then autonomously generates key welding parameters—including welding speed, current, and voltage—eliminating the need for manual configuration. For multi-layer multi-pass welding processes, the software also automatically performs trajectory planning and parameter configuration based on the weld groove type.

Contact Us
Shanghai GreatWay Intelligent Welding System Engineering Co., Ltd.

Phone：021-64501185
Address: No. 18, Lane 4916, Hongmei South Road, Minhang District, Shanghai
Technical Contact: Mr. Zhang, Phone: +8618017006220
Marketing Contact: Mrs. Wang, Phone: +8613472851949
