The system is equipped with a point/line/area vision-guided, teaching-free module that automatically performs target positioning and trajectory generation for lattice and lattice-panel welding applications.

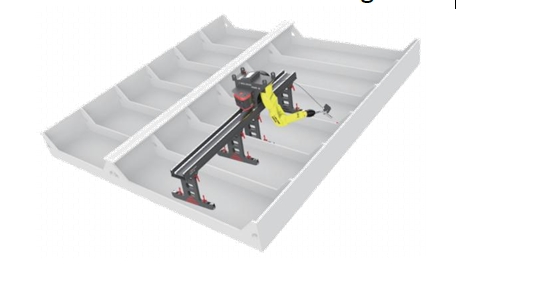

With the aid of a mobile lightweight guide rail, operators can quickly perform automated welding on weld seams of varying lengths.

Leveraging fully self-developed visual measurement technology, the system enables one-click automated welding operations for various types of workpieces in diverse application scenarios.

product features

Simple Operation：Modular Design, Vision-Guidance Technology
High Flexibility：Lightweight Guide Rail Splicing Design
High Intelligence：Vision-Guided, Programming-Free Technology
Welding Process Type：Single-Pass / Multi-Layer Multi-Pass All-Position Automated Welding

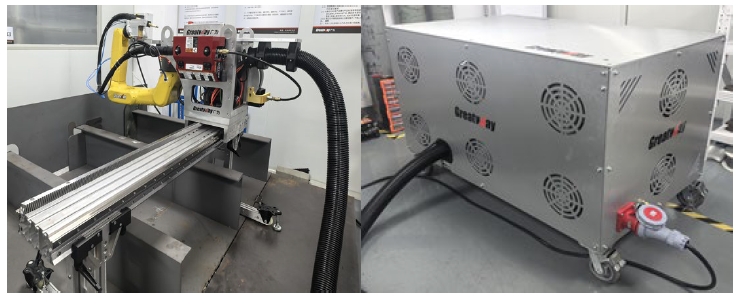

product composition

Robot type：Fanuc 200iD/7L

Lightweight Guide Rail：GW_Rail_1600

Vision System (Point / Line / Surface)：GW-Smart-Vision

Welding Power Source：GW500 / Customer-Specified

Welding Control system：GW-Smart-Welding

Main Design Parameters

Single guide rail’s moving range：1600mm

Single guide rail’s weight(without outriggers)：≤25KG

Robot WorkSpace：911MM

Payload：7KG

Robot Weight：27KG

Robot Repeatability：±0.01mm

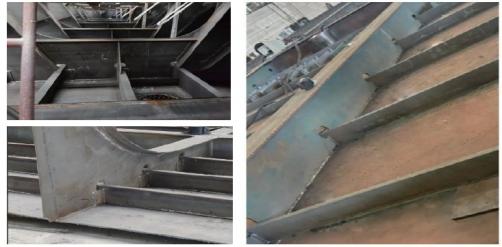

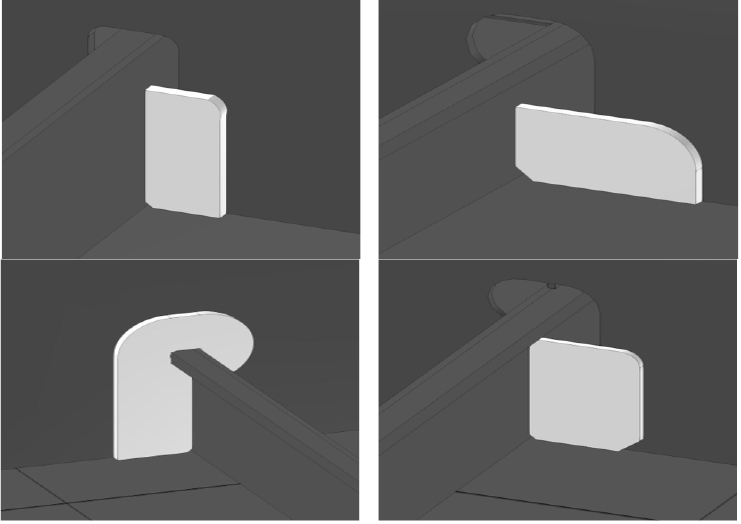

Application Display - Marine Grating Segmentation
