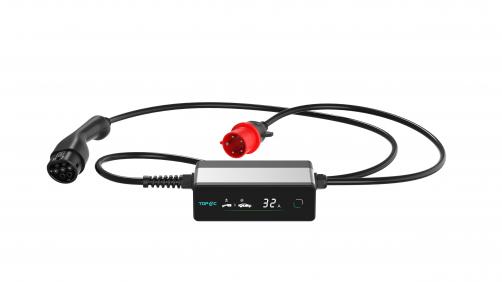

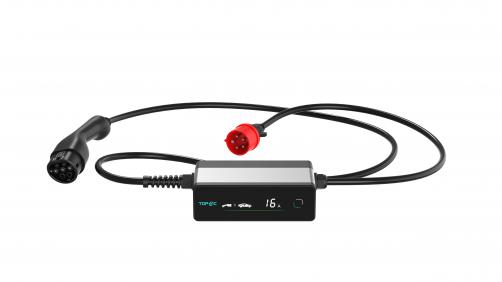

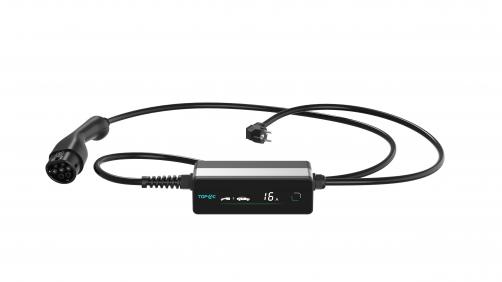

EVE01 Serials Smart Portable Charger-EU
- Tel: +86-21-64501185
- E-mail: marketing@guangwei-china.com
Full display, indicates charging current, time,power
Mechanic button to adjust the current from 8A/10A/13A/16A/24A/32A
Delay charging from 2h/4h/6h/8h
RFID authorization and APP control
IP65 for the control box, intent to use inddor and outdoor
5m TPU cable with connector cap, meet daily requirements
Power plug temperature monitor by NTC solution, safe to use it at home
| Model | Rated Voltage | Max.Current | Max.Power | Remark |
| E0123013AT2-UKA | 230V | 10A | 2.3kW | European Standard |
| E0123013AT1-UKA | 230V | 10A | 2.3kW | European Standard |
| E0123016AT2-AUC | 240V | 10A | 2.4kW | European Standard |
| E0123016AT2-AUC | 240V | 10A | 2.4kW | European Standard |
| E0123016AT2-EUA | 230V | 16A | 3.7kW | European Standard |
| E0123016AT1-EUA | 230V | 16A | 3.7kW | European Standard |
|
Specifications |
EVE01-03 |
EVE01-07 |
EVE01-11 |
EVE01-22 |
|
|
Input&Output |
Power Supply |
1 Phase |
1 Phase |
3 Phase |
3 Phase |
|
(1P+N+PE) |
(1P+N+PE) |
(3P+N+PE) |
(3P+N+PE) |
||
|
Rated Voltage |
230V |
230V |
400V |
400V |
|
|
Rated Current |
16A Max. |
32A Max. |
16A Max. |
32A Max. |
|
|
Power Frequency |
50Hz |
50Hz |
50Hz |
50Hz |
|
|
Max.Power |
3.68kW Max. |
7.4kW Max. |
11kW Max. |
22kW Max. |
|
|
User Interface |
Power Plug |
UK Plug/Schuko Plug etc. |
CEE 32A 1P Plug |
CEE 16A 3P Plug |
CEE 32A 3P Plug |
|
Charging Connector |
Type 2 / Type 1 |
||||
|
Total Length |
5m/7m/10m |
||||
|
Cable Specification |
3*2.5mm²+1*0.5mm² |
3*6mm²+1*0.5mm² |
5*2.5mm²+1*0.5mm² |
5*6mm²+1*0.5mm² |
|
|
Enclosure Material |
Plastic PC |
||||
|
Display |
Charging data |
||||
|
Current Selection |
6A-8A-10A-13A-16A-24A-32A |
||||
|
Button |
Select current/ Delay-start charging |
||||
|
Start Mode |
Plug and Play / RFID authorize |
||||
|
Safety |
Application Standard |
IEC 62752, IEC 62196, EN50620/IEC 62893 |
|||
|
Certification |
CE, CB, RoHs |
||||
|
Ingress Protection |
IP65 for control box |
||||
|
Impact Protection |
IK10 |
||||
|
Terminal Resistance |
<50K |
||||
|
Voltage Resistance |
2000V |
||||
|
Insulation Resistance |
>1000MΩ （DC500V） |
||||
|
Mechanical Life |
Plug in/Pull out > 10000 times |
||||
|
Electrical Protection |
Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection |
||||
|
Environment |
Working Temperature |
-25℃~ +45℃ |
|||
|
Working Humidity |
5% ~ 95% |
||||
