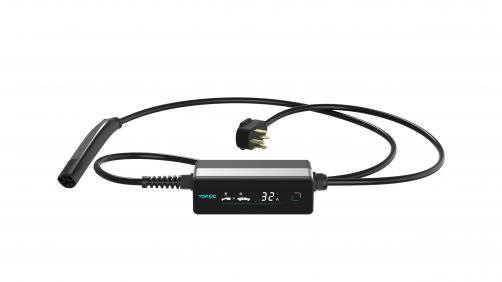

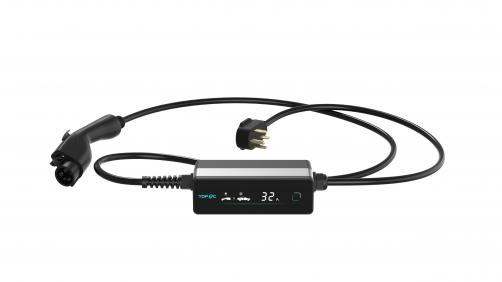

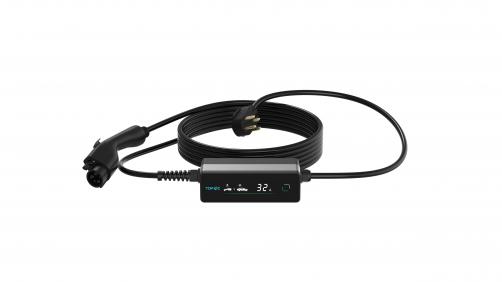

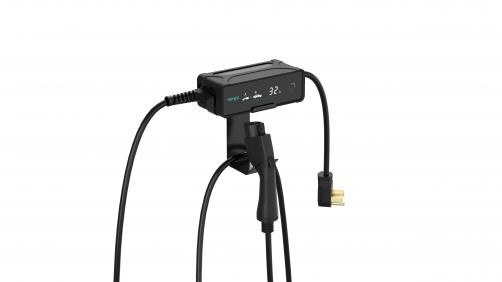

EAE Serials Smart Portable Charger-US
- Tel: +86-21-64501185
- E-mail: marketing@guangwei-china.com
- Full display, indicates charging current, time,power
- Mechanic button to adjust the current from 8A-16A-24A-32A-40A
- Delay charging from 2h/4h/6h/8h
- RFID authorization and APP control
- NEMA 3R for the control box, intent to use inddor and outdoor
- 25FT TPE cable with connector cap, meet daily requirements
- Power plug temperature monitor by NTC solution, safe to use it at home
| Model | Rated Voltage | Max.Current | Max.Power | Remark |
| EAE01-03 |
120V/208V/240V |
16A | 3.84kW | US Standard |
|
EAE01-07 |
120V/208V/240V |
32A |
7.68kW |
US Standard |
| EAE01-09 |
120V/208V/240V |
40A |
9.6kW |
US Standard |
| Specifications | EAE01-03 | EAE01-07 | EAE01-11 | |
| Input&Output | Rated Voltage | 120V/208V/240V | ||
| Rated Current | 16A Max. | 32A Max. | 40A Max. | |
| Power Frequency | 50/60Hz | |||
| Max.Power | 3.84kW Max. | 7.68kW Max. | 9.6kW Max. | |
| User Interface | Power Plug |
NEMA6-20
( can switch to NEMA5-15)
|
NEMA 6-50 / 14-50 | NEMA 6-50 / 14-50 |
| Charging Connector | Type 1 / NACS | |||
| Total Length | 25FT or other length | |||
| Cable Specification | 3x14AWG+1x18AWG | 3x10AWG+1x18AWG | 3x9AWG+1x18AWG | |
| Enclosure Material | Plastic PC | |||
| Display | Charging data & status | |||
| Current Selection | 8A-16A-24A-32A-40A | |||
| Button | Select current/ Delay-start charging | |||
| Start Mode | Plug and Play / RFID authorize / APP control | |||
| Safety | Application Standard | UL 2594/CSA C22.2#280 | ||
| Certification | FCC, ETL | |||
| Ingress Protection | Type 4 enclosure | |||
| Electrical Protection | Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection | |||
| Environment | Working Temperature | -22°F to 122°F | ||
| Working Humidity | 5% ~ 95% | |||
