EVD02 Serials Wall Charger-EU
- Tel: +86-21-64501185
- E-mail: marketing@guangwei-china.com
- 2'' LED display, indicates charging current, time,power
- Touch button to adjust the current from 8A/10A/13A/16A
- Delay charging from 2h/4h/6h/8h
- Quantiative charging from 0-99kWh
- IP65 for the control box, intent to use inddor and outdoor
- 5m TPU cable with connector cap, meet daily requirements

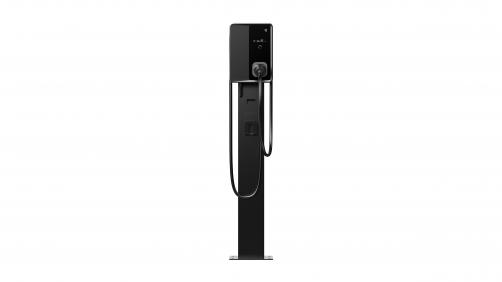

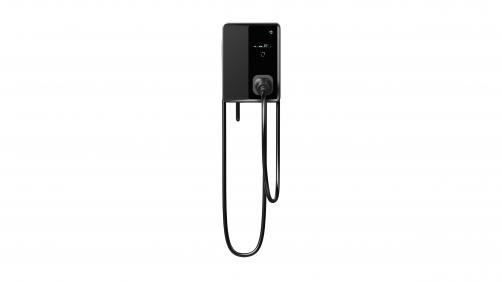

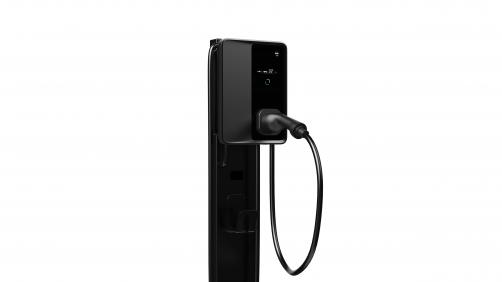

- Wall mounted and pole mounted
- RFID authorization charging and APP control
- More solution like dynamic load balance, PEN detection available
| Model | Rated Voltage | Max Current | Max Power | Remark |
| EVD02-03 | 230V | 16A | 3.7KW | European Standard |
| EVD02-07 | 400V | 32A | 7.4KW | European Standard |
| EVD02-11 | 230V | 16A | 11KW | European Standard |
| EVD02-22 | 400V | 32A | 22KW | European Standard |
| Specifications | EVD02-03 | EVD02-07 | EVD02-11 | EVD02-22 | |
| Input&Output | Power Supply | 1 Phase | 1 Phase | 3 Phase | 3 Phase |
| (1P+N+PE) | (1P+N+PE) | (3P+N+PE) | (3P+N+PE) | ||
| Rated Voltage | 230V | 230V | 400V | 400V | |
| Rated Current | 16A Max. | 32A Max. | 16A Max. | 32A Max. | |
| Power Frequency | 50Hz | 50Hz | 50Hz | 50Hz | |
| Max.Power | 3.68kW Max. | 7.4kW Max. | 11kW Max. | 22kW Max. | |
| User Interface | Power Plug | Hardwired | |||
| Charging Connector | Type 2 / Type 1 | ||||
| Total Length | 5m/7m/10m | ||||
| Cable Specification | 3*2.5mm²+1*0.5mm² | 3*6mm²+1*0.5mm² | 5*2.5mm²+1*0.5mm² | 5*6mm²+1*0.5mm² | |
| Enclosure Material | Plastic PC | ||||
| Display | Charging data | ||||
| Current Selection | 6A-8A-10A-13A-16A-24A-32A | ||||
| Button | Select current/ Delay-start charging | ||||
| Start Mode | Plug and Play / RFID authorize / APP control | ||||
| Smart | 4G, RJ45,Ethernet optional | ||||
| Safety | Application Standard | IEC 62752, IEC 62196, EN50620/IEC 62893 | |||
| Certification | CE, CB, RoHs | ||||
| Ingress Protection | IP65 for control box | ||||
| Impact Protection | IK10 | ||||
| Terminal Resistance | <50K | ||||
| Voltage Resistance | 2000V | ||||
| Insulation Resistance | >1000MΩ （DC500V） | ||||
| Mechanical Life | Plug in/Pull out > 10000 times | ||||
| Electrical Protection | Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection | ||||
| Environment | Working Temperature | -25℃~ +45℃ | |||
| Working Humidity | 5% ~ 95% | ||||
