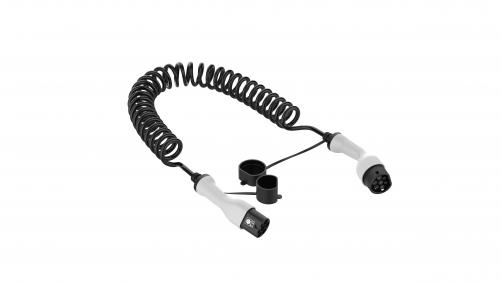

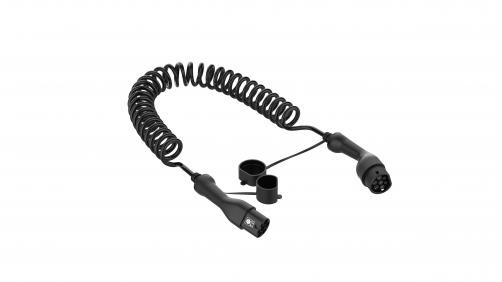

Coiled Charging Cable
- Tel: +86-21-64501185
- E-mail: marketing@guangwei-china.com
- Fast charging - up to 22kW
- Easy to organize, save time and energy
- Aviod draging on the floor and scratches
- Compatible with 1-phase & 3-phase chargers
- IP65 rated, intent to use inddor and outdoor
- 5m TPU cable with connector cap, meet daily requirements
- Storage bag included, caryy it everywhere
| Model | Rated Voltage | Max.Current | Max.Power | Connector |
| E0323016AT2A | 250V | 16A | 3.7KW | Type2 to Type2 |
| E0323032AT2A | 250V | 32A | 7.4KW | Type2 to Type2 |
| E0340016AT2A | 480V | 16A | 11KW | Type2 to Type2 |
| E0340032AT2A | 480V | 32A | 22KW | Type2 to Type2 |
| E0323016AT1A | 250V | 16A | 3.7KW | Type2 to Type1 |
| E0323032AT1A | 250V | 32A | 7.4KW | Type2 to Type1 |
| Specifications | E0323016AT2A | E0323032AT2A | E0340016AT2A | E0340032AT2A | |
| Input&Output | Power Supply | 1 Phase | 1 Phase | 3 Phase | 3 Phase |
| (1P+N+PE) | (1P+N+PE) | (3P+N+PE) | (3P+N+PE) | ||
| Rated Voltage | 230V | 230V | 400V | 400V | |
| Rated Current | 16A Max. | 32A Max. | 16A Max. | 32A Max. | |
| Power Frequency | 50Hz | 50Hz | 50Hz | 50Hz | |
| Max.Power | 3.68kW Max. | 7.4kW Max. | 11kW Max. | 22kW Max. | |
| Connector | Power Plug | Type 2 | |||
| Charging Connector | Type 2 / Type 1 | ||||
| Total Length | 5m/7m/10m | ||||
| Cable Specification | 3*2.5mm²+1*0.5mm² | 3*6mm²+1*0.5mm² | 5*2.5mm²+1*0.5mm² | 5*6mm²+1*0.5mm² | |
| Enclosure Material | Plastic PC | ||||
| Connector Color | Charging data | ||||
| Safety | Application Standard | IEC 62196, EN50620/IEC 62893 | |||
| Certification | CE, CB, RoHs | ||||
| Ingress Protection | IP65 mated, IP55 unmated | ||||
| Impact Protection | IK10 | ||||
| Terminal Resistance | <50K | ||||
| Voltage Resistance | 2000V | ||||
| Insulation Resistance | >1000MΩ （DC500V） | ||||
| Mechanical Life | Plug in/Pull out > 10000 times | ||||
| Electrical Protection | Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection | ||||
| Environment | Working Temperature | -40℃~ +80℃ | |||
| Working Humidity | 5% ~ 95% | ||||
