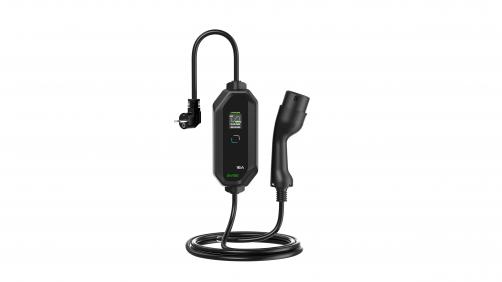

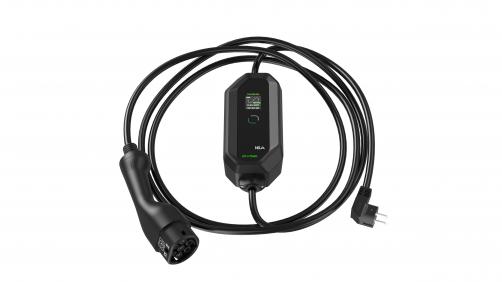

949 Serials Portable EV Charger-US
- Tel: +86-21-64501185
- E-mail: marketing@guangwei-china.com
- 2'' LCD display, indicates charging current, time,power
- Touch button to adjust the current from 6A/8A/10A/13A/16A
- Delay charging from 2h/4h/6h/8h
- NEMA 3R for the control box, intent to use inddor and outdoor
- 25FT TPE cable with connector cap, meet daily requirements
- Power plug temperature monitor by NTC solution, safe to use it at home
| Model | Rated Voltage | Max.Current | Max.Power | Remark |
| E0124016AT1C |
120V/208V/240V |
16A | 3.84kW | US Standard |
|
E0124016ATSC |
120V/208V/240V |
16A |
3.84kW |
US Standard |
| Specifications | E0124016AT1C | E0124016ATSC | |
| Input&Output | Rated Voltage | 120V/208V/240V | 120V/208V/240V |
| Rated Current | 16A Max. | 16A Max. | |
| Power Frequency | 50/60Hz | 50/60Hz | |
| Max.Power | 3.84kW Max. | 3.84kW Max. | |
| User Interface | Power Plug | NEMA6-20 ( can switch to NEMA5-15) | |
| Charging Connector | Type 1 | NACS | |
| Total Length | 25FT or other length | ||
| Cable Specification | 3x14AWG+1x18AWG | ||
| Enclosure Material | Plastic PC | ||
| Display | Charging data | ||
| Current Selection | 6A-8A-10A-13A-16A | ||
| Button | Select current/ Delay-start charging | ||
| Start Mode | Plug and Play | ||
| Safety | Application Standard | UL 2594/CSA C22.2#280 | |
| Certification | FCC, ETL | ||
| Ingress Protection | Type 4 enclosure | ||
| Electrical Protection | Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection | ||
| Environment | Working Temperature | -22°F to 122°F | |
| Working Humidity | 5% ~ 95% | ||
