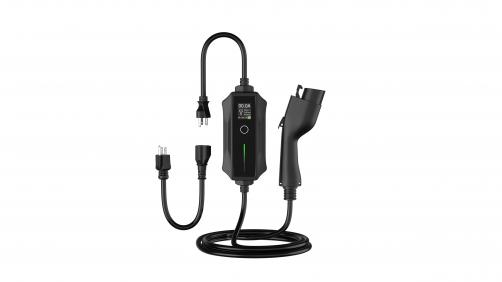

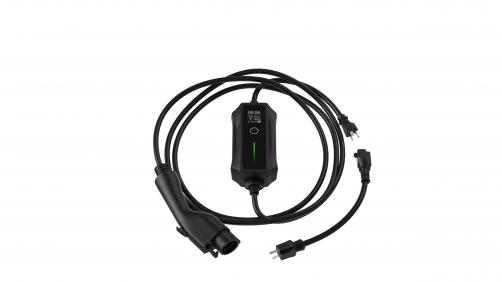

796 Serials Portable EV Charger-US
  • 3.84kW Portable EV Charger
  • Specifications
    • 1.8''LCD display, indicates charging current, time,power
    • Delay charging from 2h/4h/6h/8h
    • Mechanic button to adjust the current from 8A/10A/13A/16A
    • IP65 for the control box, intent to use inddor and outdoor
    • 25ft TPE cable with connector cap, meet daily requirements
    • Power plug temperature monitor by NTC solution, safe to use it at home

    Model Rated Voltage Max.Current Max.Power Remark
    E0124016AT1A 120V/208V/240V
    		 16A 3.84kW US Standard
    E0124016ATSA
    		 120V/208V/240V
    		 16A 3.84kW
    		 US Standard


  • Specifications E0124016AT1A E0124016ATSA
    Input&Output Rated Voltage 120V/208V/240V 120V/208V/240V
    Rated Current 16A Max. 16A Max.
    Power Frequency 50/60Hz 50/60Hz
    Max.Power 3.84kW Max. 3.84kW Max.
    User Interface Power Plug NEMA6-20 ( can switch to NEMA5-15)
    Charging Connector Type 1 NACS
    Total Length 25FT or other length
    Cable Specification 3x14AWG+1x18AWG
    Enclosure Material Plastic PC
    Display Charging data
    Current Selection 8A-10A-13A-16A
    Button Select current/ Delay-start charging
    Start Mode Plug and Play
    Safety Application Standard UL 2594/CSA C22.2#280
    Certification FCC, ETL
    Ingress Protection Type 4 enclosure
    Electrical Protection Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection
    Environment Working Temperature -22°F to 122°F
    Working Humidity 5% ~ 95%
