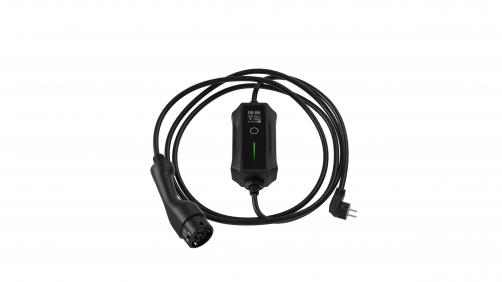

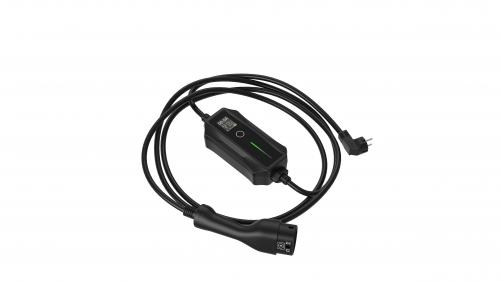

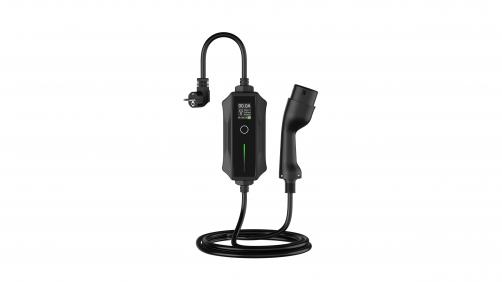

796 Serials Portable EV Charger-EU
  • 3.7kW Portable EV Charger
  • Specifications
    • 1.8''LCD display, indicates charging current, time,power
    • Delay charging from 2h/4h/6h/8h
    • Mechanic button to adjust the current from 8A/10A/13A/16A
    • IP65 for the control box, intent to use inddor and outdoor
    • 5m TPU cable with connector cap, meet daily requirements
    • Power plug temperature monitor by NTC solution, safe to use it at home



    Model Rated Voltage Max.Current Max.Power Remark
    E0123013AT2-UKA 230V 10A 2.3kW European Standard
    E0123013AT1-UKA
    		 230V
    		 10A 2.3kW
    		 European Standard
    E0123016AT2-AUC
    		 240V
    		 10A
    		 2.4kW
    		 European Standard
    E0123016AT2-AUC
    		 240V
    		 10A
    		 2.4kW
    		 European Standard
    E0123016AT2-EUA
    		 230V
    		 16A 3.7kW European Standard
    E0123016AT1-EUA 230V
    		 16A 3.7kW
    		 European Standard


  • Specifications

    E0123013AT2-UKA

    E0124010AT2-AUC

    E0123013AT1-UKA

    E0124010AT1-AUC

    		E0123016AT2-EUA E0123016AT1-EUA
    Input&Output Power Supply 1 Phase 1 Phase 1 Phase 1 Phase
    (1P+N+PE) (1P+N+PE) (1P+N+PE) (1P+N+PE)
    Rated Voltage 230V / 240V 230V /240V 230V 230V
    Rated Current 10A Max. 10A Max. 16A Max. 16A Max.
    Power Frequency 50Hz 50Hz 50Hz 50Hz
    Max.Power 2.4kW Max. 2.4kW Max. 3.68kW Max. 3.68kW Max.
    User Interface Power Plug UK Plug/AU Plug UK Plug/AU Plug Schuko Plug Schuko Plug
    Charging Connector Type 2 Type 1 Type 2 Type 1
    Total Length 5m/7m/10m
    Cable Specification Input: 3*2.5mm²+2*0.5mm², Output: 3*2.5mm²+1*0.5mm²
    Enclosure Material Plastic PC
    Display Charging data
    Current Selection 8A-10A-13A-16A
    Button Select current/ Delay-start charging
    Start Mode Plug and Play
    Safety Application Standard IEC 62752, IEC 62196, EN50620/IEC 62893
    Certification CE, CB, RoHs
    Ingress Protection IP65 for control box
    Impact Protection IK10
    Terminal Resistance <50K
    Voltage Resistance 2000V
    Insulation Resistance >1000MΩ （DC500V）
    Mechanical Life Plug in/Pull out > 10000 times
    Electrical Protection Over current protection, leakage protection, over temperature protection, surge protection, over or under voltage protection, ground protection, CP Diode short circuit Protection, Relay Adhesive protection
    Environment Working Temperature -25℃~ +45℃
    Working Humidity 5% ~ 95%
